High Pole - Height Stick Adapter Kit

$79.00
Model Number: highpole-height-stick-adapter-kit
Fits atop your high pole
46″ flip over arm
Fits inside tool box or trunk

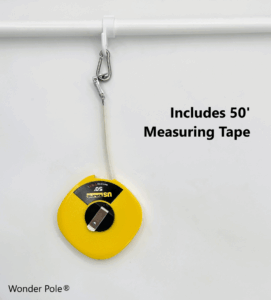

Includes 50' Pro Measuring Tape
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Your Price: $79.00
79.000
A one-time price of $79.00 will be added to your order.
  • Description
  • Specifications
  • Customer Reviews (0)

High Pole - Height Stick Adapter Kit

The new Height Stick Adapter Kit does the same job without the need of another pole to store or go missing.

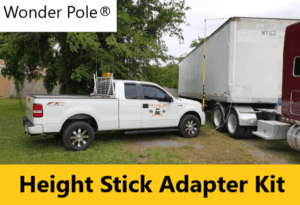

Use your existing High Pole, mount the Height Stick Adapter with the swing over arm. Attach the included 50' tape measure to the pole end of the arm and raise it to the height of the load (See image). Now note height on tape measure. Lower the pole, remove the Height Stick Adapter, and set the height of the pole compensating for your mounting height from the road surface. Be sure to allow at least 6" or more height above the load.

Height Stick DrawingGet our new High Pole Height Stick. A simple fast and easy accessory for your pilot car pole.  Just slip it over and onto the top mast of your Wonder Pole® high pole, swing over and lock the contact tube, . Raise the pole and rest the contact tube on the highest part of the load. Remove the pole from the mount and lower for a quick tape measure.

You now have the height of the load and can add 6″ inches for clearance. Using a conventional height stick you will need to first get a measurement and then transfer that to the pole. With the High Pole Height Stick you only need to do it once.

Attach any standard tape measure and raise it up to the highest point of the load. This will give you an accurate measurement from the top of the load to grade. Now just subtract the height of your mount from grade and your good to go.

  • Example: Your tape shows the load height at 13 1/2′.
  • Add at least 6″ for clearance.
  • Measure the bottom of your pole mount from grade, Example (18″)
  • Subtract 18″ from the 13 1/2′ to obtain final pole height in the mount
  • Lower pole, remove Height Stick Adapter and set the high pole at 12′

Our new high pole height stick adapter fits every Wonder Pole high pole model. The Height Stick Adapter can be stored inside your car or truck.
